Leírás

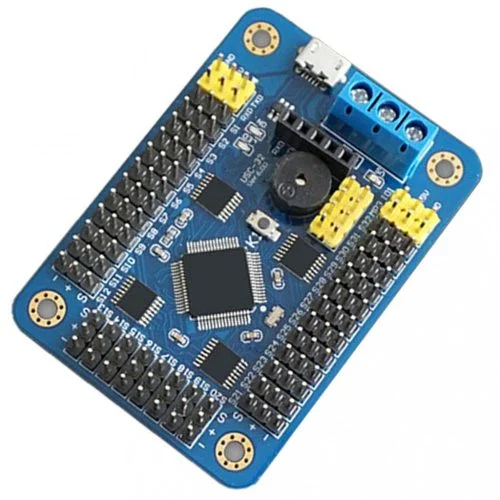

This item support online upgrade firmware perfectly now, it means that in the future if there is a new function, the user can upgrade easily, so as to ensure the user have the latest firmware. Up to 32 servo motors can controlled at the same time, either by using a software on a PC, or UART communication ( TTL serial port) of MCU (Arduino, 51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering.You can also download instructions to the servo motor controller for offline operation.
New Feature:
1.Redesign hardware, all signal isolation.(hardware performance increase 10 times)
2.Complete new code. (stability increased 10 times)
3.Onboard 16M small U disk memory space, can store tens of thousands of group action.(increased 50 times)
4.Support Baud Rate : 9600,19200,28400,57600,115200,128000 (recognized automatically)
5.Fully support PS2 joystick controller and 32 channel servo control panel
6.Support network function, can support long-distance control through the network
7.Support wifi control through wifi device
8.Support Windows (7/8/10/XP)、Linux、IOS、Android platform
9.Support simplified Chinese、traditional Chinese、English language
The biggest advantage is that : you can use the computer software to control the robot or control your servo steering. It can control 32 servo motors at the same time , with a high precision (1 μs), and adopt the 32 bit orignal package CPU, internal integration USB communication interface, high stability and precision.
